齒 數 NO OF TEETH |
節徑 PITCH DIA Dp |
外徑 OUTSIDE DIA Do |

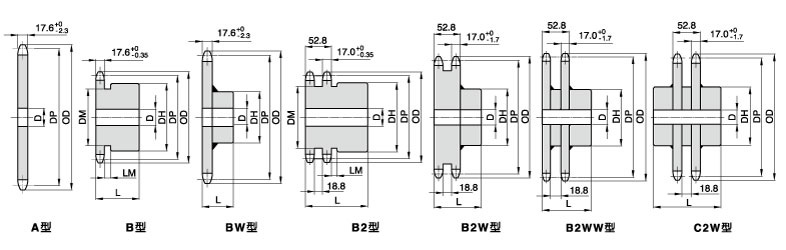

A型 A TYPE |
B型 B TYPE |
|||||||
孔 徑 BORE:d |
概 略 重 量 APPROX WT(kg) |
材 質 MATERIAL |
孔 徑 BORE:d |
輪 殼 HUB |
概 略 重 量 APPROX WT(kg) |
材 質 MATERIAL |
|||||
最 小 MIN |
最 大 MAX |
直 徑 Dh |
長 度 L |
||||||||
10 |
102.74 |
116 |
20 |
0.90 |
Q235A
( SS41 ) |
20 |
40 |
65 |
55 |
1.90 |
35# (S35C) |
11 |
112.70 |
127 |
20 |
1.10 |
20 |
50 |
75 |
55 |
2.30 |
||
12 |
122.67 |
138 |
20 |
1.40 |
20 |
55 |
86 |
55 |
2.90 |
||
13 |
132.67 |
148 |
20 |
1.70 |
20 |
55 |
88 |
55 |
3.10 |
||
14 |
142.68 |
158 |
20 |
2.00 |
20 |
55 |
88 |
55 |
3.60 |
||
15 |
152.71 |
168 |
20 |
2.30 | 20 |
60 |
98 |
55 |
4.20 |
||
16 |
162.74 |
179 |
20 |
2.60 | 20 |
60 |
98 |
55 |
4.60 |
||
17 |
127.79 |
189 |
20 |
2.90 |
20 |
65 |
107 |
55 |
5.30 |
||
18 |
182.84 |
199 |
20 |
3.30 |
20 |
65 |
107 |
55 |
5.70 |
||
19 |
192.90 |
209 |
20 |
3.60 |
20 |
65 |
107 |
55 |
6.10 |
||
20 |
202.96 |
220 |
20 |
4.00 |
20 |
65 |
107 |
55 |
6.50 |
||
21 |
213.03 |
230 |
20 |
4.50 |
20 |
65 |
107 |
60 |
7.00 |
||
22 |
223.10 |
240 |
20 |
4.90 |
20 |
70 |
117 |
60 |
7.90 |
||
23 |
233.17 |
250 |
20 |
5.30 |
20 |
70 |
117 |
60 |
8.30 |
||
24 |
243.25 |
260 |
20 |
5.90 |
20 |
70 |
117 |
60 |
8.80 |
||
25 |
253.32 |
270 |
20 |
6.50 |
20 |
70 |
117 |
60 |
9.30 |
||
26 |
263.40 |
281 |
20 |
6.90 |
20 |
70 |
117 |
60 |
9.70 |
||
27 |
273.49 |
291 |
20 |
7.50 |
20 |
70 |
117 |
60 |
10.30 |
||
28 |
283.57 |
301 |
20 |
8.10 |
20 |
70 |
117 |
60 |
10.90 |
||
29 |
293.66 |
311 |
20 |
8.80 |
20 |
70 |
117 |
60 |
11.60 |
||
30 |
303.75 |
321 |
20 |
9.40 |
20 |
70 |
117 |
60 |
12.10 |
||
31 |
313.83 |
331 |
20 |
10.00 |
20 |
70 |
117 |
60 |
12.90 |
Q235A
或 35# (SS41or S35C) |
|
32 |
323.92 |
341 |
20 |
10.70 |
20 |
70 |
117 |
60 |
13.40 |
||
33 |
334.01 |
352 |
20 |
11.60 |
20 |
70 |
117 |
60 |
14.50 |
||
34 |
344.11 |
362 |
20 |
12.40 |
20 |
80 |
127 |
63 |
16.40 |
||
35 |
354.20 |
372 |
20 |
13.00 |
20 |
80 |
127 |
63 |
17.00 |
||
36 |
364.29 |
382 |
20 |
13.80 |
20 |
80 |
127 |
63 |
17.80 |
||
37 |
374.38 |
392 |
20 |
14.50 |
20 |
80 |
127 |
63 |
18.50 |
||
38 |
384.48 |
402 |
20 |
16.00 |
20 |
80 |
127 |
63 |
19.00 |
||
39 |
394.57 |
412 |
20 |
16.50 |
20 |
80 |
127 |
63 |
19.50 |
||
40 |
404.67 |
422 |
20 |
17.50 |
20 |
80 |
127 |
63 |
20.50 |
||
41 |
414.77 |
433 |
20 |
18.50 |
20 |
80 |
127 |
63 |
21.50 |
||
42 |
424.86 |
443 |
20 |
19.50 |
20 |
80 |
127 |
63 |
22.50 |
||
43 |
434.96 |
453 |
20 |
20.50 |
20 |
80 |
127 |
63 |
23.50 |
||
44 |
445.06 |
463 |
20 |
21.00 |
20 |
80 |
127 |
63 |
24.00 |
||
45 |
455.16 |
473 |
20 |
22.00 |
20 |
80 |
127 |
63 |
25.00 |
||
48 |
485.45 |
503 |
20 |
26.00 |
20 |
80 |
127 |
63 |
29.00 |
||
50 |
505.65 |
524 |
20 |
27.00 |
20 |
80 |
127 |
63 |
30.00 |
||
54 |
546.05 |
564 |
20 |
31.00 |
20 |
90 |
147 |
80 |
37.40 |
||
55 |
556.15 |
574 |
20 |
32.00 |
20 |
90 |
147 |
80 |
38.40 |
||
60 |
606.67 |
625 |
20 |
39.00 |
20 |
90 |
147 |
80 |
45.40 |
||
65 |
657.17 |
675 |
20 |
48.00 |
20 |
90 |
147 |
80 |
54.40 |
||
70 |
707.68 |
726 |
20 |
52.00 |
20 |
90 |
147 |
100 |
62.70 |
||
75 |
758.20 |
777 |
30 |
63.00 |
20 |
90 |
147 |
100 |
73.70 |
||
85 |
859.23 |
878 |
30 |
82.00 |
|||||||
90 |
909.75 |
928 |
30 |
92.00 |
|||||||
